smacc2::ISmaccComponent Class Reference

#include <component.hpp>

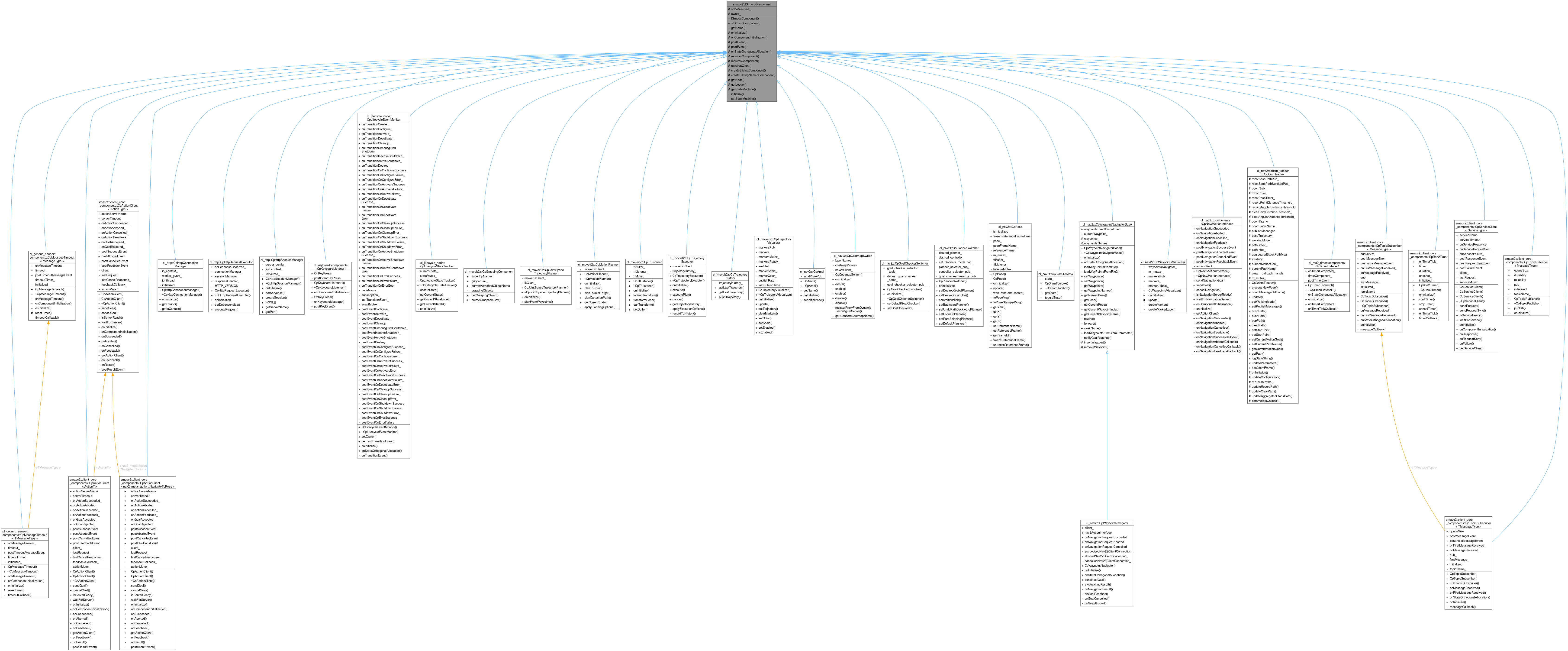

Inheritance diagram for smacc2::ISmaccComponent:

Collaboration diagram for smacc2::ISmaccComponent:

Public Member Functions
	ISmaccComponent ()
virtual	~ISmaccComponent ()
virtual std::string	getName () const

Protected Member Functions
virtual void	onInitialize ()
template<typename TOrthogonal , typename TClient >
void	onComponentInitialization ()
template<typename EventType >
void	postEvent (const EventType &ev)
template<typename EventType >
void	postEvent ()
template<typename TOrthogonal , typename TSourceObject >
void	onStateOrthogonalAllocation ()
template<typename TComponent >
void	requiresComponent (TComponent *&requiredComponentStorage, ComponentRequirement requirementType=ComponentRequirement::SOFT)
template<typename TComponent >
void	requiresComponent (std::string name, TComponent *&requiredComponentStorage, ComponentRequirement requirementType=ComponentRequirement::SOFT)
template<typename TClient >
void	requiresClient (TClient *&requiredClientStorage)
template<typename SmaccComponentType , typename TOrthogonal , typename TClient , typename... TArgs>
SmaccComponentType *	createSiblingComponent (TArgs... targs)
template<typename SmaccComponentType , typename TOrthogonal , typename TClient , typename... TArgs>
SmaccComponentType *	createSiblingNamedComponent (std::string name, TArgs... targs)
rclcpp::Node::SharedPtr	getNode ()
rclcpp::Logger	getLogger () const
ISmaccStateMachine *	getStateMachine ()

Protected Attributes
ISmaccStateMachine *	stateMachine_
ISmaccClient *	owner_

Private Member Functions
void	initialize (ISmaccClient *owner)
void	setStateMachine (ISmaccStateMachine *stateMachine)

Friends
class	ISmaccOrthogonal
class	ISmaccClient

Detailed Description

Definition at line 29 of file component.hpp.

Constructor & Destructor Documentation

ISmaccComponent()

smacc2::ISmaccComponent::ISmaccComponent

(

)

Definition at line 27 of file smacc_component.cpp.

: owner_(nullptr) {}

~ISmaccComponent()

smacc2::ISmaccComponent::~ISmaccComponent ( )

virtual

Definition at line 25 of file smacc_component.cpp.

{}

Member Function Documentation

createSiblingComponent()

template<typename SmaccComponentType , typename TOrthogonal , typename TClient , typename... TArgs>

SmaccComponentType * smacc2::ISmaccComponent::createSiblingComponent ( TArgs... targs )

protected

Definition at line 103 of file smacc_component_impl.hpp.

{
  return this->owner_->createComponent<SmaccComponentType, TOrthogonal, TClient>(targs...);
}

References smacc2::ISmaccClient::createComponent(), and owner_.

Here is the call graph for this function:

createSiblingNamedComponent()

template<typename SmaccComponentType , typename TOrthogonal , typename TClient , typename... TArgs>

SmaccComponentType * smacc2::ISmaccComponent::createSiblingNamedComponent ( std::string name, TArgs... targs )

protected

Definition at line 109 of file smacc_component_impl.hpp.

{
  return this->owner_->createNamedComponent<SmaccComponentType, TOrthogonal, TClient>(
    name, targs...);
}

References smacc2::ISmaccClient::createNamedComponent(), and owner_.

Here is the call graph for this function:

getLogger()

rclcpp::Logger smacc2::ISmaccComponent::getLogger ( ) const

protected

Definition at line 44 of file smacc_component.cpp.

{ return owner_->getLogger(); }

References smacc2::ISmaccClient::getLogger(), and owner_.

Referenced by cl_moveit2z::CpTrajectoryExecutor::cancel(), smacc2::client_core_components::CpActionClient< ActionType >::cancelGoal(), cl_nav2z::components::CpNav2ActionInterface::cancelNavigation(), smacc2::client_core_components::CpRos2Timer::cancelTimer(), cl_moveit2z::CpTfListener::canTransform(), cl_moveit2z::CpTrajectoryVisualizer::clearMarkers(), cl_nav2z::odom_tracker::CpOdomTracker::clearPath(), cl_moveit2z::CpGraspingComponent::createGraspableBox(), cl_nav2z::CpCostmapSwitch::disable(), cl_nav2z::CpCostmapSwitch::enable(), cl_http::CpHttpRequestExecutor::executeRequest(), cl_moveit2z::CpMotionPlanner::getCurrentState(), cl_moveit2z::CpTrajectoryHistory::getLastTrajectory(), cl_nav2z::CpWaypointNavigatorBase::loadWayPointsFromFile(), cl_nav2z::CpWaypointNavigatorBase::loadWayPointsFromFile2(), cl_nav2z::CpWaypointNavigatorBase::loadWaypointsFromYamlParameter(), cl_nav2z::odom_tracker::CpOdomTracker::logStateString(), cl_moveit2z::CpTfListener::lookupTransform(), cl_nav2z::CpWaypointNavigatorBase::notifyGoalReached(), cl_keyboard::components::CpKeyboardListener1::onComponentInitialization(), cl_nav2z::components::CpNav2ActionInterface::onComponentInitialization(), smacc2::client_core_components::CpActionClient< ActionType >::onComponentInitialization(), smacc2::client_core_components::CpServiceClient< ServiceType >::onComponentInitialization(), cl_nav2z::CpWaypointNavigator::onGoalReached(), cl_generic_sensor::components::CpMessageTimeout< MessageType >::onInitialize(), cl_lifecycle_node::CpLifecycleEventMonitor::onInitialize(), cl_lifecycle_node::CpLifecycleStateTracker::onInitialize(), cl_moveit2z::CpJointSpaceTrajectoryPlanner::onInitialize(), cl_moveit2z::CpMotionPlanner::onInitialize(), cl_moveit2z::CpTfListener::onInitialize(), cl_moveit2z::CpTrajectoryExecutor::onInitialize(), cl_moveit2z::CpTrajectoryVisualizer::onInitialize(), cl_nav2z::components::CpNav2ActionInterface::onInitialize(), cl_nav2z::CpCostmapSwitch::onInitialize(), cl_nav2z::CpPose::onInitialize(), cl_nav2z::odom_tracker::CpOdomTracker::onInitialize(), cl_ros2_timer::components::CpTimerListener1::onInitialize(), smacc2::client_core_components::CpActionClient< ActionType >::onInitialize(), smacc2::client_core_components::CpRos2Timer::onInitialize(), smacc2::client_core_components::CpServiceClient< ServiceType >::onInitialize(), smacc2::client_core_components::CpTopicSubscriber< MessageType >::onInitialize(), cl_nav2z::components::CpNav2ActionInterface::onNavigationAbortedCallback(), cl_nav2z::components::CpNav2ActionInterface::onNavigationCancelledCallback(), cl_nav2z::components::CpNav2ActionInterface::onNavigationFeedbackCallback(), cl_nav2z::components::CpNav2ActionInterface::onNavigationSuccessCallback(), smacc2::client_core_components::CpActionClient< ActionType >::onResult(), cl_ros2_timer::components::CpTimerListener1::onStateOrthogonalAllocation(), cl_ros2_timer::components::CpTimerListener1::onTimerTickCallback(), cl_lifecycle_node::CpLifecycleEventMonitor::onTransitionEvent(), cl_nav2z::odom_tracker::CpOdomTracker::parametersCallback(), cl_moveit2z::CpMotionPlanner::planCartesianPath(), cl_nav2z::odom_tracker::CpOdomTracker::popPath(), cl_keyboard::components::CpKeyboardListener1::postKeyEvent(), smacc2::client_core_components::CpActionClient< ActionType >::postResultEvent(), cl_nav2z::odom_tracker::CpOdomTracker::processNewPose(), cl_nav2z::odom_tracker::CpOdomTracker::pushPath(), cl_moveit2z::CpTrajectoryHistory::pushTrajectory(), cl_moveit2z::CpTrajectoryExecutor::recordToHistory(), cl_nav2z::CpCostmapSwitch::registerProxyFromDynamicReconfigureServer(), requiresComponent(), requiresComponent(), cl_nav2z::CpWaypointNavigatorBase::seekName(), cl_nav2z::components::CpNav2ActionInterface::sendGoal(), smacc2::client_core_components::CpActionClient< ActionType >::sendGoal(), cl_nav2z::components::CpNav2ActionInterface::sendNavigationGoal(), cl_nav2z::CpWaypointNavigator::sendNextGoal(), smacc2::client_core_components::CpServiceClient< ServiceType >::sendRequest(), smacc2::client_core_components::CpServiceClient< ServiceType >::sendRequestSync(), cl_nav2z::CpPlannerSwitcher::setBackwardPlanner(), cl_nav2z::odom_tracker::CpOdomTracker::setCurrentPathName(), cl_nav2z::CpPlannerSwitcher::setForwardPlanner(), cl_nav2z::CpGoalCheckerSwitcher::setGoalCheckerId(), cl_nav2z::CpPlannerSwitcher::setPureSpinningPlanner(), cl_nav2z::odom_tracker::CpOdomTracker::setStartPoint(), cl_nav2z::odom_tracker::CpOdomTracker::setStartPoint(), cl_moveit2z::CpTrajectoryVisualizer::setTrajectory(), cl_nav2z::CpPlannerSwitcher::setUndoPathBackwardPlanner(), cl_nav2z::odom_tracker::CpOdomTracker::setWorkingMode(), smacc2::client_core_components::CpRos2Timer::startTimer(), smacc2::client_core_components::CpRos2Timer::stopTimer(), cl_generic_sensor::components::CpMessageTimeout< MessageType >::timeoutCallback(), smacc2::client_core_components::CpRos2Timer::timerCallback(), cl_nav2z::CpPose::toPoseStampedMsg(), cl_moveit2z::CpTfListener::transformPose(), cl_nav2z::CpPose::update(), cl_nav2z::odom_tracker::CpOdomTracker::update(), cl_nav2z::odom_tracker::CpOdomTracker::updateClearPath(), cl_nav2z::odom_tracker::CpOdomTracker::updateRecordPath(), cl_lifecycle_node::CpLifecycleStateTracker::updateState(), smacc2::client_core_components::CpActionClient< ActionType >::waitForServer(), smacc2::client_core_components::CpServiceClient< ServiceType >::waitForService(), and cl_nav2z::CpPose::waitTransformUpdate().

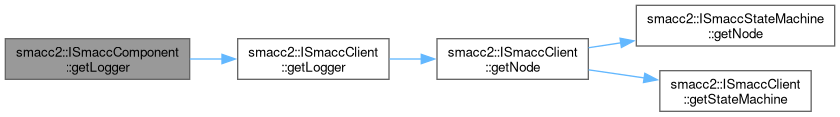

Here is the call graph for this function:

Here is the caller graph for this function:

getName()

std::string smacc2::ISmaccComponent::getName ( ) const

virtual

Reimplemented in cl_nav2z::CpAmcl.

Definition at line 46 of file smacc_component.cpp.

{
  std::string keyname = demangleSymbol(typeid(*this).name());
  return keyname;
}

References smacc2::introspection::demangleSymbol().

Referenced by smacc2::client_core_components::CpActionClient< ActionType >::cancelGoal(), smacc2::client_core_components::CpRos2Timer::cancelTimer(), cl_moveit2z::CpGraspingComponent::createGraspableBox(), cl_moveit2z::CpTrajectoryHistory::getLastTrajectory(), smacc2::client_core_components::CpActionClient< ActionType >::onComponentInitialization(), smacc2::client_core_components::CpServiceClient< ServiceType >::onComponentInitialization(), cl_generic_sensor::components::CpMessageTimeout< MessageType >::onInitialize(), smacc2::client_core_components::CpActionClient< ActionType >::onInitialize(), smacc2::client_core_components::CpRos2Timer::onInitialize(), smacc2::client_core_components::CpServiceClient< ServiceType >::onInitialize(), smacc2::client_core_components::CpTopicSubscriber< MessageType >::onInitialize(), smacc2::client_core_components::CpActionClient< ActionType >::onResult(), smacc2::client_core_components::CpActionClient< ActionType >::postResultEvent(), cl_moveit2z::CpTrajectoryHistory::pushTrajectory(), smacc2::client_core_components::CpActionClient< ActionType >::sendGoal(), cl_nav2z::CpWaypointNavigator::sendNextGoal(), smacc2::client_core_components::CpServiceClient< ServiceType >::sendRequest(), smacc2::client_core_components::CpServiceClient< ServiceType >::sendRequestSync(), smacc2::client_core_components::CpRos2Timer::startTimer(), smacc2::client_core_components::CpRos2Timer::stopTimer(), smacc2::client_core_components::CpRos2Timer::timerCallback(), smacc2::client_core_components::CpActionClient< ActionType >::waitForServer(), and smacc2::client_core_components::CpServiceClient< ServiceType >::waitForService().

Here is the call graph for this function:

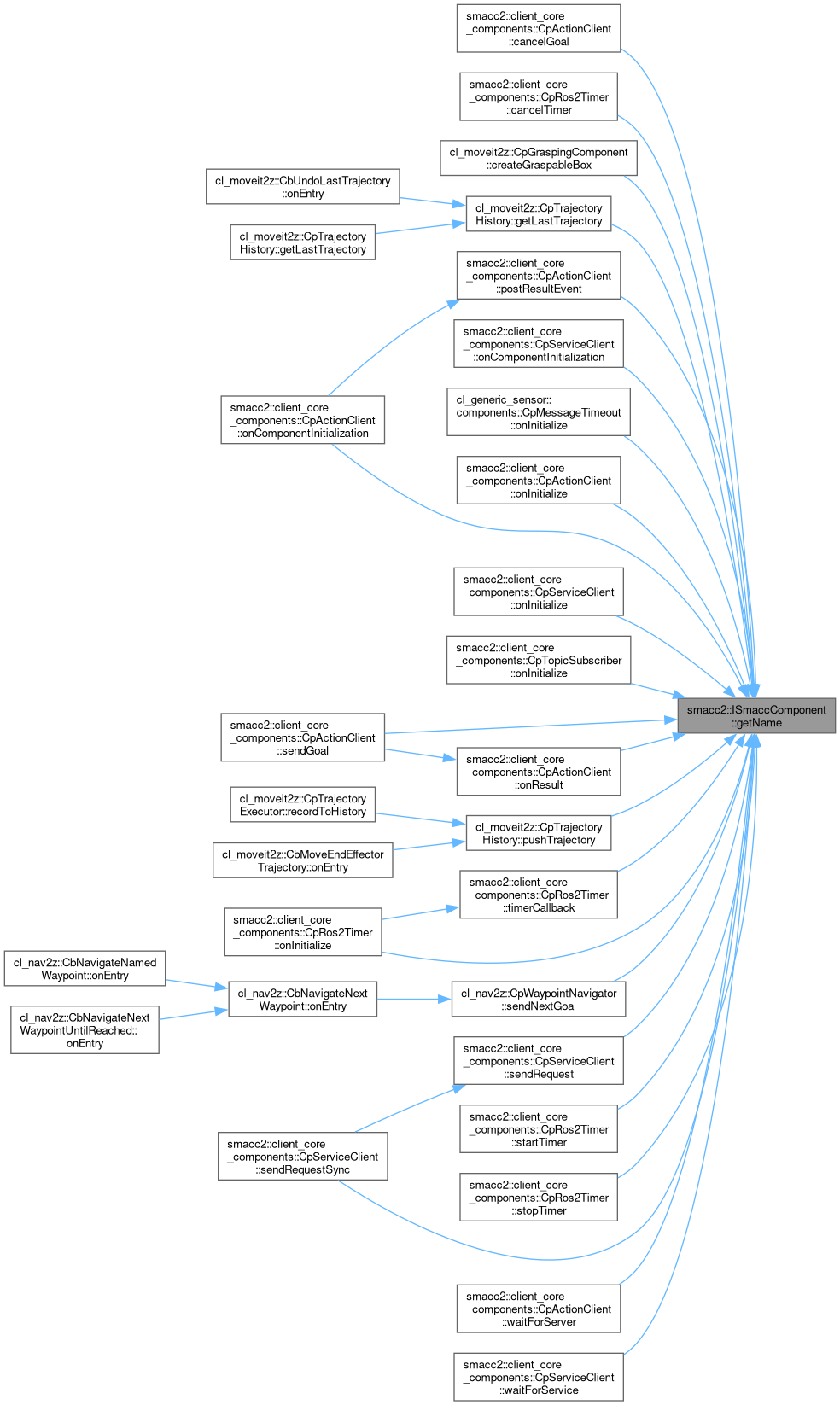

Here is the caller graph for this function:

getNode()

rclcpp::Node::SharedPtr smacc2::ISmaccComponent::getNode ( )

protected

Definition at line 42 of file smacc_component.cpp.

{ return owner_->getNode(); }

References smacc2::ISmaccClient::getNode(), and owner_.

Referenced by cl_nav2z::odom_tracker::CpOdomTracker::clearPath(), cl_nav2z::CpWaypointsVisualizer::createMarker(), cl_nav2z::CpWaypointsVisualizer::createMarkerLabel(), cl_nav2z::CpPose::freezeReferenceFrame(), cl_nav2z::CpWaypointNavigatorBase::loadWaypointsFromYamlParameter(), cl_generic_sensor::components::CpMessageTimeout< MessageType >::onInitialize(), cl_lifecycle_node::CpLifecycleEventMonitor::onInitialize(), cl_moveit2z::CpJointSpaceTrajectoryPlanner::onInitialize(), cl_moveit2z::CpTfListener::onInitialize(), cl_moveit2z::CpTrajectoryVisualizer::onInitialize(), cl_nav2z::CpAmcl::onInitialize(), cl_nav2z::CpGoalCheckerSwitcher::onInitialize(), cl_nav2z::CpPlannerSwitcher::onInitialize(), cl_nav2z::CpPose::onInitialize(), cl_nav2z::CpWaypointsVisualizer::onInitialize(), cl_nav2z::odom_tracker::CpOdomTracker::onInitialize(), smacc2::client_core_components::CpActionClient< ActionType >::onInitialize(), smacc2::client_core_components::CpRos2Timer::onInitialize(), smacc2::client_core_components::CpServiceClient< ServiceType >::onInitialize(), smacc2::client_core_components::CpTopicSubscriber< MessageType >::onInitialize(), cl_nav2z::odom_tracker::CpOdomTracker::processNewPose(), cl_nav2z::CpCostmapSwitch::registerProxyFromDynamicReconfigureServer(), cl_nav2z::odom_tracker::CpOdomTracker::setOdomFrame(), cl_nav2z::odom_tracker::CpOdomTracker::setStartPoint(), cl_moveit2z::CpTrajectoryVisualizer::update(), cl_nav2z::CpPose::update(), cl_nav2z::CpWaypointsVisualizer::update(), cl_nav2z::odom_tracker::CpOdomTracker::updateConfiguration(), cl_nav2z::odom_tracker::CpOdomTracker::updateRecordPath(), and cl_nav2z::CpPose::waitTransformUpdate().

Here is the call graph for this function:

Here is the caller graph for this function:

getStateMachine()

ISmaccStateMachine * smacc2::ISmaccComponent::getStateMachine ( )

protected

Definition at line 52 of file smacc_component.cpp.

{ return this->stateMachine_; }

References stateMachine_.

Referenced by smacc2::client_core_components::CpActionClient< ActionType >::onAborted(), smacc2::client_core_components::CpActionClient< ActionType >::onCancelled(), smacc2::client_core_components::CpServiceClient< ServiceType >::onFailure(), smacc2::client_core_components::CpActionClient< ActionType >::onFeedback(), smacc2::client_core_components::CpTopicSubscriber< MessageType >::onFirstMessageReceived(), cl_keyboard::components::CpKeyboardListener1::OnKeyPress(), smacc2::client_core_components::CpTopicSubscriber< MessageType >::onMessageReceived(), cl_generic_sensor::components::CpMessageTimeout< MessageType >::onMessageTimeout(), cl_nav2z::components::CpNav2ActionInterface::onNavigationAborted(), cl_nav2z::components::CpNav2ActionInterface::onNavigationCancelled(), cl_nav2z::components::CpNav2ActionInterface::onNavigationFeedback(), cl_nav2z::components::CpNav2ActionInterface::onNavigationSucceeded(), smacc2::client_core_components::CpServiceClient< ServiceType >::onRequestSent(), smacc2::client_core_components::CpServiceClient< ServiceType >::onResponse(), smacc2::client_core_components::CpActionClient< ActionType >::onSucceeded(), cl_ros2_timer::components::CpTimerListener1::onTimerCompleted(), and smacc2::client_core_components::CpRos2Timer::onTimerTick().

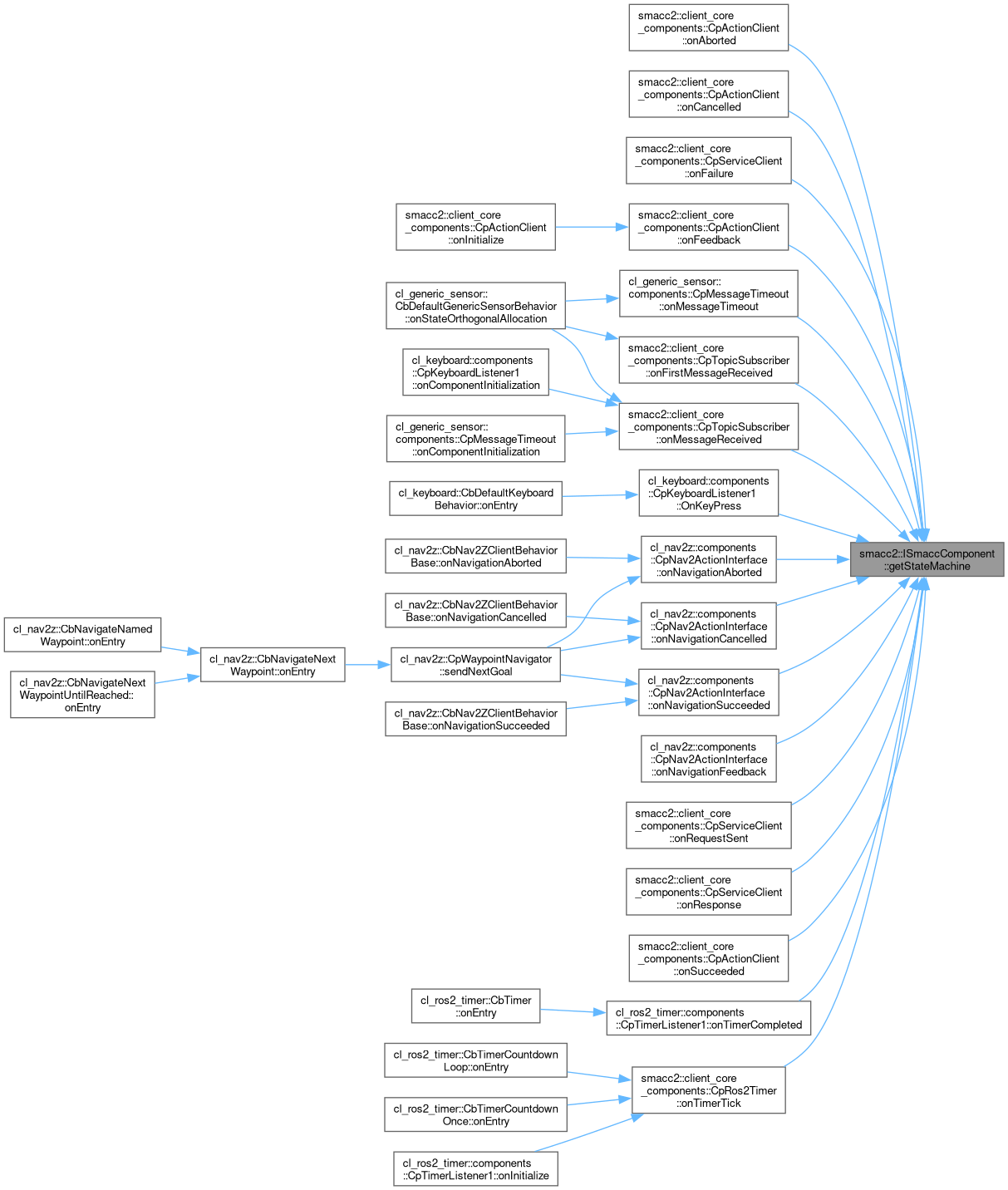

Here is the caller graph for this function:

initialize()

void smacc2::ISmaccComponent::initialize ( ISmaccClient * owner )

private

Definition at line 29 of file smacc_component.cpp.

{
  owner_ = owner;
  this->onInitialize();
}

References onInitialize(), and owner_.

Here is the call graph for this function:

onComponentInitialization()

template<typename TOrthogonal , typename TClient >

void smacc2::ISmaccComponent::onComponentInitialization ( )

protected

Definition at line 116 of file smacc_component_impl.hpp.

{
}

onInitialize()

void smacc2::ISmaccComponent::onInitialize ( )

protectedvirtual

Reimplemented in cl_generic_sensor::components::CpMessageTimeout< MessageType >, cl_generic_sensor::components::CpMessageTimeout< TMessageType >, cl_http::CpHttpConnectionManager, cl_http::CpHttpRequestExecutor, cl_http::CpHttpSessionManager, cl_lifecycle_node::CpLifecycleEventMonitor, cl_lifecycle_node::CpLifecycleStateTracker, cl_moveit2z::CpJointSpaceTrajectoryPlanner, cl_moveit2z::CpMotionPlanner, cl_moveit2z::CpTfListener, cl_moveit2z::CpTrajectoryExecutor, cl_moveit2z::CpTrajectoryVisualizer, cl_nav2z::components::CpNav2ActionInterface, cl_nav2z::CpAmcl, cl_nav2z::CpCostmapSwitch, cl_nav2z::CpGoalCheckerSwitcher, cl_nav2z::CpPlannerSwitcher, cl_nav2z::CpPose, cl_nav2z::CpWaypointNavigator, cl_nav2z::CpWaypointNavigatorBase, cl_nav2z::CpWaypointsVisualizer, cl_nav2z::odom_tracker::CpOdomTracker, cl_ros2_timer::components::CpTimerListener1, smacc2::client_core_components::CpActionClient< ActionType >, smacc2::client_core_components::CpActionClient< ActionT >, smacc2::client_core_components::CpActionClient< nav2_msgs::action::NavigateToPose >, smacc2::client_core_components::CpRos2Timer, smacc2::client_core_components::CpServiceClient< ServiceType >, smacc2::client_core_components::CpTopicPublisher< MessageType >, smacc2::client_core_components::CpTopicSubscriber< MessageType >, and smacc2::client_core_components::CpTopicSubscriber< TMessageType >.

Definition at line 35 of file smacc_component.cpp.

{}

Referenced by initialize().

Here is the caller graph for this function:

onStateOrthogonalAllocation()

template<typename TOrthogonal , typename TSourceObject >

void smacc2::ISmaccComponent::onStateOrthogonalAllocation ( )

inlineprotected

Definition at line 55 of file component.hpp.

  {
  }

postEvent() [1/2]

template<typename EventType >

void smacc2::ISmaccComponent::postEvent ( )

protected

Definition at line 37 of file smacc_component_impl.hpp.

{
  auto ev = new EventType();
  stateMachine_->postEvent(ev);
}

References smacc2::ISmaccStateMachine::postEvent(), and stateMachine_.

Referenced by cl_nav2z::CpWaypointNavigatorBase::notifyGoalReached(), cl_generic_sensor::components::CpMessageTimeout< MessageType >::onComponentInitialization(), cl_nav2z::components::CpNav2ActionInterface::onComponentInitialization(), smacc2::client_core_components::CpActionClient< ActionType >::onComponentInitialization(), smacc2::client_core_components::CpServiceClient< ServiceType >::onComponentInitialization(), cl_lifecycle_node::CpLifecycleEventMonitor::onStateOrthogonalAllocation(), cl_ros2_timer::components::CpTimerListener1::onStateOrthogonalAllocation(), smacc2::client_core_components::CpTopicSubscriber< MessageType >::onStateOrthogonalAllocation(), cl_keyboard::components::CpKeyboardListener1::postKeyEvent(), and smacc2::client_core_components::CpActionClient< ActionType >::postResultEvent().

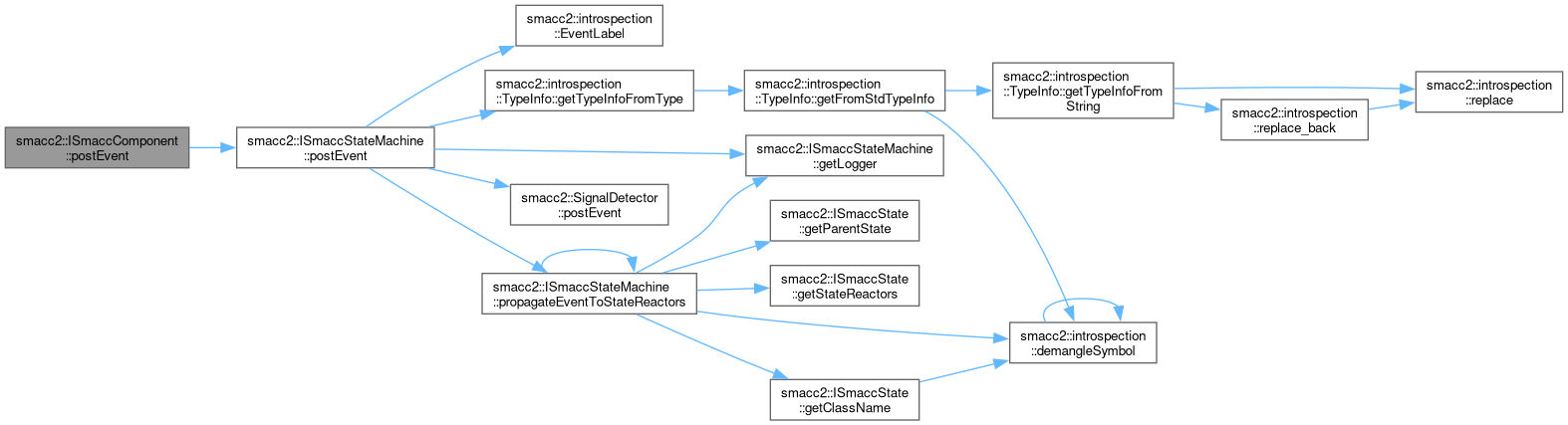

Here is the call graph for this function:

Here is the caller graph for this function:

postEvent() [2/2]

template<typename EventType >

void smacc2::ISmaccComponent::postEvent ( const EventType & ev )

protected

Definition at line 31 of file smacc_component_impl.hpp.

{
  stateMachine_->postEvent(ev);
}

References smacc2::ISmaccStateMachine::postEvent(), and stateMachine_.

Here is the call graph for this function:

requiresClient()

template<typename TClient >

void smacc2::ISmaccComponent::requiresClient ( TClient *& requiredClientStorage )

protected

Definition at line 97 of file smacc_component_impl.hpp.

{
  this->owner_->requiresClient(requiredClientStorage);
}

References owner_, and smacc2::ISmaccClient::requiresClient().

Referenced by cl_moveit2z::CpJointSpaceTrajectoryPlanner::onInitialize(), cl_moveit2z::CpMotionPlanner::onInitialize(), and cl_moveit2z::CpTrajectoryExecutor::onInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

requiresComponent() [1/2]

template<typename TComponent >

void smacc2::ISmaccComponent::requiresComponent ( std::string name, TComponent *& requiredComponentStorage, ComponentRequirement requirementType = ComponentRequirement::SOFT )

protected

Definition at line 70 of file smacc_component_impl.hpp.

{
  requiredComponentStorage = this->owner_->getComponent<TComponent>(name);

  if (requiredComponentStorage == nullptr && requirementType == ComponentRequirement::HARD)
  {
    RCLCPP_DEBUG_STREAM(
      this->getLogger(), std::string("Required component with name: '") + name + "'" +
                           demangleSymbol(typeid(TComponent).name()) +
                           " not found. Available components:");

    std::vector<std::shared_ptr<ISmaccComponent>> components;
    this->owner_->getComponents(components);

    for (auto c : components)
    {
      RCLCPP_DEBUG(this->getLogger(), " - Component %s", c->getName().c_str());
    }

    throw std::runtime_error(
      std::string("Component ") + demangleSymbol(typeid(TComponent).name()) +
      std::string(" not found"));
  }
}

References smacc2::introspection::demangleSymbol(), smacc2::ISmaccClient::getComponent(), smacc2::ISmaccClient::getComponents(), getLogger(), smacc2::HARD, and owner_.

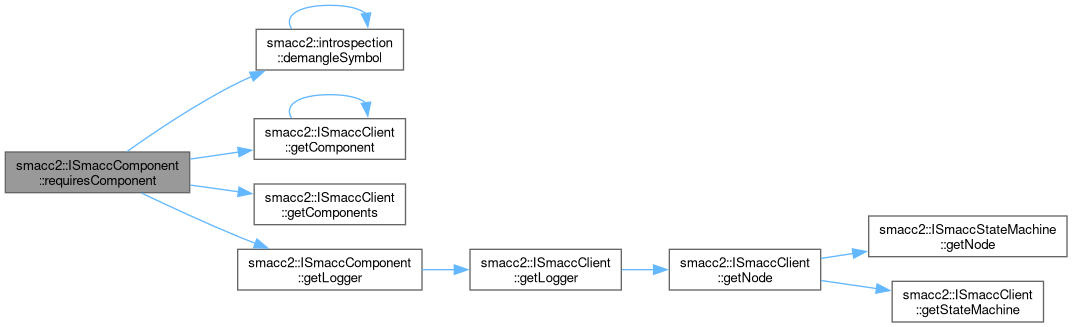

Here is the call graph for this function:

requiresComponent() [2/2]

template<typename TComponent >

void smacc2::ISmaccComponent::requiresComponent ( TComponent *& requiredComponentStorage, ComponentRequirement requirementType = ComponentRequirement::SOFT )

protected

Definition at line 44 of file smacc_component_impl.hpp.

{
  requiredComponentStorage = this->owner_->getComponent<TComponent>();

  if (requiredComponentStorage == nullptr && requirementType == ComponentRequirement::HARD)
  {
    RCLCPP_DEBUG_STREAM(
      this->getLogger(), std::string("Required component ") +
                           demangleSymbol(typeid(TComponent).name()) +
                           " not found. Available components:");

    std::vector<std::shared_ptr<ISmaccComponent>> components;
    this->owner_->getComponents(components);

    for (auto c : components)
    {
      RCLCPP_DEBUG(this->getLogger(), "- Component %s", c->getName().c_str());
    }

    throw std::runtime_error(
      std::string("Component ") + demangleSymbol(typeid(TComponent).name()) + " not found");
  }
}

References smacc2::introspection::demangleSymbol(), smacc2::ISmaccClient::getComponent(), smacc2::ISmaccClient::getComponents(), getLogger(), smacc2::HARD, and owner_.

Referenced by cl_generic_sensor::components::CpMessageTimeout< MessageType >::onComponentInitialization(), cl_keyboard::components::CpKeyboardListener1::onComponentInitialization(), cl_moveit2z::CpTrajectoryExecutor::onInitialize(), cl_nav2z::components::CpNav2ActionInterface::onInitialize(), cl_nav2z::CpWaypointNavigator::onInitialize(), cl_nav2z::CpWaypointsVisualizer::onInitialize(), cl_nav2z::odom_tracker::CpOdomTracker::onInitialize(), cl_ros2_timer::components::CpTimerListener1::onInitialize(), cl_nav2z::CpWaypointNavigator::onStateOrthogonalAllocation(), and cl_nav2z::CpWaypointNavigator::sendNextGoal().

Here is the call graph for this function:

Here is the caller graph for this function:

setStateMachine()

void smacc2::ISmaccComponent::setStateMachine ( ISmaccStateMachine * stateMachine )

private

Definition at line 37 of file smacc_component.cpp.

{
  stateMachine_ = stateMachine;
}

References stateMachine_.

Friends And Related Symbol Documentation

ISmaccClient

friend class ISmaccClient

friend

Definition at line 99 of file component.hpp.

ISmaccOrthogonal

friend class ISmaccOrthogonal

friend

Definition at line 98 of file component.hpp.

Member Data Documentation

owner_

ISmaccClient* smacc2::ISmaccComponent::owner_

protected

Definition at line 88 of file component.hpp.

Referenced by createSiblingComponent(), createSiblingNamedComponent(), getLogger(), getNode(), initialize(), cl_nav2z::CpCostmapSwitch::onInitialize(), cl_nav2z::CpWaypointNavigator::onStateOrthogonalAllocation(), cl_nav2z::CpWaypointNavigatorBase::onStateOrthogonalAllocation(), requiresClient(), requiresComponent(), requiresComponent(), cl_nav2z::CpWaypointNavigator::sendNextGoal(), and cl_lifecycle_node::CpLifecycleEventMonitor::setOwner().

stateMachine_

ISmaccStateMachine* smacc2::ISmaccComponent::stateMachine_

protected

Definition at line 86 of file component.hpp.

Referenced by getStateMachine(), postEvent(), postEvent(), cl_lifecycle_node::CpLifecycleEventMonitor::setOwner(), and setStateMachine().

---

The documentation for this class was generated from the following files:

• smacc2/include/smacc2/component.hpp
• smacc2/include/smacc2/impl/smacc_component_impl.hpp
• smacc2/src/smacc2/smacc_component.cpp
