cl_ros2_timer::CbTimer Class Reference

#include <cb_ros2_timer.hpp>

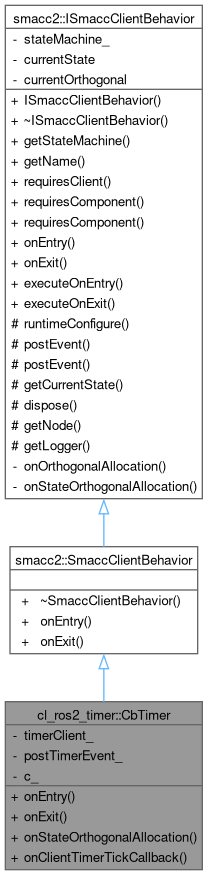

Inheritance diagram for cl_ros2_timer::CbTimer:

Collaboration diagram for cl_ros2_timer::CbTimer:

Public Member Functions
void	onEntry () override
void	onExit () override
template<typename TOrthogonal , typename TSourceObject >
void	onStateOrthogonalAllocation ()
void	onClientTimerTickCallback ()
Public Member Functions inherited from smacc2::SmaccClientBehavior
virtual	~SmaccClientBehavior ()
void	onEntry () override
void	onExit () override
Public Member Functions inherited from smacc2::ISmaccClientBehavior
	ISmaccClientBehavior ()
virtual	~ISmaccClientBehavior ()
ISmaccStateMachine *	getStateMachine ()
std::string	getName () const
template<typename SmaccClientType >
void	requiresClient (SmaccClientType *&storage)
template<typename SmaccComponentType >
void	requiresComponent (SmaccComponentType *&storage, bool throwExceptionIfNotExist)
template<typename SmaccComponentType >
void	requiresComponent (SmaccComponentType *&storage, ComponentRequirement requirementType=ComponentRequirement::SOFT)
virtual void	executeOnEntry ()
virtual void	executeOnExit ()

Private Attributes
ClRos2Timer *	timerClient_
std::function< void()>	postTimerEvent_
boost::signals2::scoped_connection	c_

Additional Inherited Members
Protected Member Functions inherited from smacc2::ISmaccClientBehavior
virtual void	runtimeConfigure ()
template<typename EventType >
void	postEvent (const EventType &ev)
template<typename EventType >
void	postEvent ()
ISmaccState *	getCurrentState ()
virtual void	dispose ()
virtual rclcpp::Node::SharedPtr	getNode () const
virtual rclcpp::Logger	getLogger () const

Detailed Description

Definition at line 22 of file cb_ros2_timer.hpp.

Member Function Documentation

onClientTimerTickCallback()

void cl_ros2_timer::CbTimer::onClientTimerTickCallback ( )

inline

Definition at line 46 of file cb_ros2_timer.hpp.

{ this->postTimerEvent_(); }

References postTimerEvent_.

Referenced by onEntry().

Here is the caller graph for this function:

onEntry()

void cl_ros2_timer::CbTimer::onEntry ( )

inlineoverridevirtual

Reimplemented from smacc2::ISmaccClientBehavior.

Definition at line 25 of file cb_ros2_timer.hpp.

  {
    this->requiresClient(timerClient_);

    // Get the timer listener component
    cl_ros2_timer::components::CpTimerListener1 * timerListener;
    this->requiresComponent(timerListener);

    // Connect to the timer listener component
    timerListener->onTimerCompleted(&CbTimer::onClientTimerTickCallback, this);
  }

References onClientTimerTickCallback(), cl_ros2_timer::components::CpTimerListener1::onTimerCompleted(), smacc2::ISmaccClientBehavior::requiresClient(), smacc2::ISmaccClientBehavior::requiresComponent(), and timerClient_.

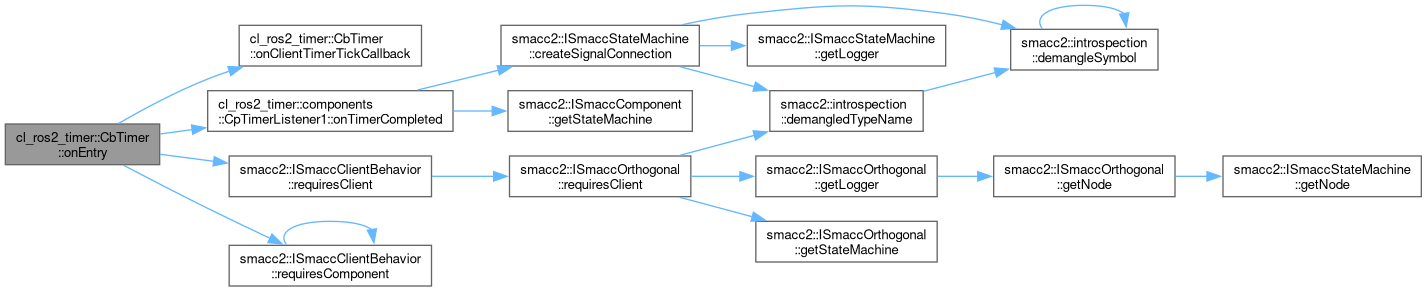

Here is the call graph for this function:

onExit()

void cl_ros2_timer::CbTimer::onExit ( )

inlineoverridevirtual

Reimplemented from smacc2::ISmaccClientBehavior.

Definition at line 37 of file cb_ros2_timer.hpp.

{}

onStateOrthogonalAllocation()

template<typename TOrthogonal , typename TSourceObject >

void cl_ros2_timer::CbTimer::onStateOrthogonalAllocation ( )

inline

Definition at line 40 of file cb_ros2_timer.hpp.

  {
    this->postTimerEvent_ = [this]()
    { this->template postEvent<EvTimer<TSourceObject, TOrthogonal>>(); };
  }

References smacc2::ISmaccClientBehavior::postEvent(), and postTimerEvent_.

Here is the call graph for this function:

Member Data Documentation

c_

boost::signals2::scoped_connection cl_ros2_timer::CbTimer::c_

private

Definition at line 51 of file cb_ros2_timer.hpp.

postTimerEvent_

std::function<void()> cl_ros2_timer::CbTimer::postTimerEvent_

private

Definition at line 50 of file cb_ros2_timer.hpp.

Referenced by onClientTimerTickCallback(), and onStateOrthogonalAllocation().

timerClient_

ClRos2Timer* cl_ros2_timer::CbTimer::timerClient_

private

Definition at line 49 of file cb_ros2_timer.hpp.

Referenced by onEntry().

---

The documentation for this class was generated from the following file:

• smacc2_client_library/cl_ros2_timer/include/cl_ros2_timer/client_behaviors/cb_ros2_timer.hpp
