smacc2::client_bases::ClRosLaunch2 Class Reference

#include <smacc_ros_launch_client_2.hpp>

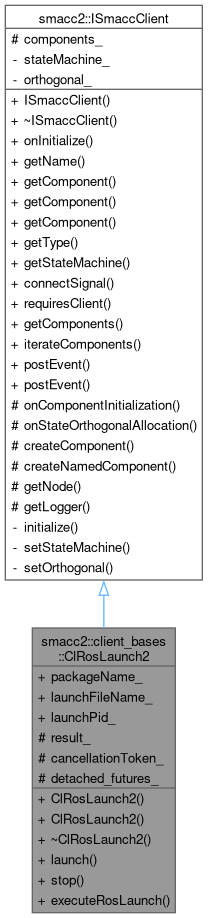

Inheritance diagram for smacc2::client_bases::ClRosLaunch2:

Collaboration diagram for smacc2::client_bases::ClRosLaunch2:

Public Member Functions
	ClRosLaunch2 ()
	ClRosLaunch2 (std::string packageName, std::string launchFilename)
virtual	~ClRosLaunch2 ()
void	launch ()
void	stop ()
Public Member Functions inherited from smacc2::ISmaccClient
	ISmaccClient ()
virtual	~ISmaccClient ()
virtual void	onInitialize ()
virtual std::string	getName () const
template<typename TComponent >
TComponent *	getComponent ()
template<typename TComponent >
TComponent *	getComponent (std::string name)
template<typename TComponent >
TComponent *	getComponent (int index)
virtual smacc2::introspection::TypeInfo::Ptr	getType ()
ISmaccStateMachine *	getStateMachine ()
template<typename TSmaccSignal , typename T >
void	connectSignal (TSmaccSignal &signal, void(T::*callback)(), T *object)
template<typename SmaccClientType >
void	requiresClient (SmaccClientType *&storage)
void	getComponents (std::vector< std::shared_ptr< ISmaccComponent > > &components)
const std::vector< std::shared_ptr< ISmaccComponent > > &	iterateComponents () const
template<typename EventType >
void	postEvent (const EventType &ev)
template<typename EventType >
void	postEvent ()

Static Public Member Functions
static std::future< std::string >	executeRosLaunch (std::string packageName, std::string launchFilename, std::function< bool()> cancelCondition, ClRosLaunch2 *client=nullptr)

Public Attributes
std::string	packageName_
std::string	launchFileName_
pid_t	launchPid_

Protected Types
typedef std::function< void >	cancelCallback

Protected Attributes
std::future< std::string >	result_
std::atomic< bool >	cancellationToken_ = ATOMIC_VAR_INIT(false)
Protected Attributes inherited from smacc2::ISmaccClient
std::map< ComponentKey, std::shared_ptr< smacc2::ISmaccComponent > >	components_

Static Protected Attributes
static std::map< std::future< void >, cancelCallback >	detached_futures_

Additional Inherited Members
Protected Member Functions inherited from smacc2::ISmaccClient
template<typename TOrthogonal , typename TClient >
void	onComponentInitialization ()
template<typename TOrthogonal , typename TSourceObject >
void	onStateOrthogonalAllocation ()
template<typename SmaccComponentType , typename TOrthogonal , typename TClient , typename... TArgs>
SmaccComponentType *	createComponent (TArgs... targs)
template<typename SmaccComponentType , typename TOrthogonal , typename TClient , typename... TArgs>
SmaccComponentType *	createNamedComponent (std::string name, TArgs... targs)
rclcpp::Node::SharedPtr	getNode ()
rclcpp::Logger	getLogger ()

Detailed Description

Definition at line 43 of file smacc_ros_launch_client_2.hpp.

Member Typedef Documentation

cancelCallback

std::function<void> smacc2::client_bases::ClRosLaunch2::cancelCallback

protected

Definition at line 72 of file smacc_ros_launch_client_2.hpp.

Constructor & Destructor Documentation

ClRosLaunch2() [1/2]

smacc2::client_bases::ClRosLaunch2::ClRosLaunch2

(

)

Definition at line 41 of file smacc_ros_launch_client_2.cpp.

: cancellationToken_(false) {}

ClRosLaunch2() [2/2]

smacc2::client_bases::ClRosLaunch2::ClRosLaunch2	(	std::string	packageName,
		std::string	launchFilename )

Definition at line 43 of file smacc_ros_launch_client_2.cpp.

: packageName_(packageName), launchFileName_(launchFilename), cancellationToken_(false)
{
}

~ClRosLaunch2()

smacc2::client_bases::ClRosLaunch2::~ClRosLaunch2 ( )

virtual

Definition at line 48 of file smacc_ros_launch_client_2.cpp.

{}

Member Function Documentation

executeRosLaunch()

std::future< std::string > smacc2::client_bases::ClRosLaunch2::executeRosLaunch ( std::string packageName, std::string launchFilename, std::function< bool()> cancelCondition, ClRosLaunch2 * client = nullptr )

static

Definition at line 64 of file smacc_ros_launch_client_2.cpp.

{
  return std::async(
    std::launch::async,
    [packageName, launchFileName, cancelCondition, client]()
    {
      RCLCPP_WARN_STREAM(rclcpp::get_logger("smacc2"), "[ClRosLaunch2] Starting ros launch thread");

      std::stringstream cmd;
      cmd << "ros2 launch " << packageName << " " << launchFileName;
      std::array<char, 128> buffer;
      std::string result;

      auto child = runProcess(cmd.str().c_str());

      if (!child.pipe)
      {
        throw std::runtime_error("popen() failed!");
      }
      if (client != nullptr)
      {
        client->launchPid_ = child.pid;
      }

      int fd = fileno(child.pipe);

      int flags = fcntl(fd, F_GETFL, 0);
      fcntl(fd, F_SETFL, flags | O_NONBLOCK);

      bool cancelled = false;

      // while (!cancelCondition())
      while (!cancelled)
      {
        cancelled = cancelCondition();
        size_t bytesRead = fread(buffer.data(), 1, buffer.size(), /*data*/ child.pipe);

        if (bytesRead > 0)
        {
          result.append(buffer.data(), bytesRead);
        }
        else if (bytesRead == 0)
        {
          // No data available yet
          std::this_thread::sleep_for(std::chrono::milliseconds(100));  // Wait before retrying
        }
        else
        {
          // Read error
          RCLCPP_ERROR(rclcpp::get_logger("smacc2"), "Error reading from pipe");
          break;
        }
      }

      rclcpp::sleep_for(2s);
      if (child.pid > 0)
      {
        killGrandchildren(child.pid);
        rclcpp::sleep_for(2s);
      }

      int status;
      pid_t child_pid = child.pid;
      if (waitpid(child_pid, &status, 0) != -1)
      {
        if (WIFEXITED(status))
        {
          int exit_status = WEXITSTATUS(status);
          RCLCPP_INFO(
            rclcpp::get_logger("smacc2"), "Child process exited with status: %d", exit_status);
        }
        else if (WIFSIGNALED(status))
        {
          int term_signal = WTERMSIG(status);
          RCLCPP_WARN(
            rclcpp::get_logger("smacc2"), "Child process terminated by signal: %d", term_signal);
        }
      }
      else
      {
        RCLCPP_ERROR(rclcpp::get_logger("smacc2"), "Error waiting for child process.");
      }

      pclose(child.pipe);
      close(child.pipe->_fileno);  // Close pipe file descriptor but not processes

      RCLCPP_WARN_STREAM(rclcpp::get_logger("smacc2"), "[ClRosLaunch2] RESULT:\n" << result);

      return result;
    });
}

References smacc2::client_bases::killGrandchildren(), launchPid_, and smacc2::client_bases::runProcess().

Referenced by launch(), and smacc2::client_behaviors::CbRosLaunch2::onEntry().

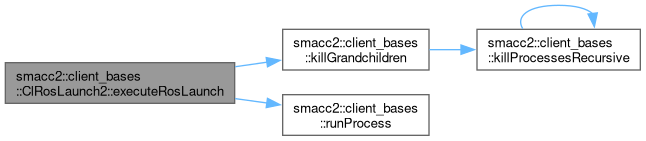

Here is the call graph for this function:

Here is the caller graph for this function:

launch()

void smacc2::client_bases::ClRosLaunch2::launch

(

)

Definition at line 50 of file smacc_ros_launch_client_2.cpp.

{
  cancellationToken_.store(false);
  // Start the launch execution thread
  this->result_ =
    executeRosLaunch(packageName_, launchFileName_, [this]() { return cancellationToken_.load(); });
}

References cancellationToken_, executeRosLaunch(), launchFileName_, packageName_, and result_.

Referenced by smacc2::client_behaviors::CbRosLaunch2::onEntry().

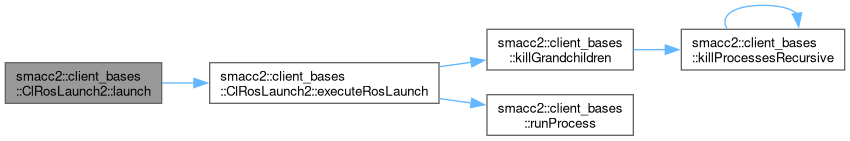

Here is the call graph for this function:

Here is the caller graph for this function:

stop()

void smacc2::client_bases::ClRosLaunch2::stop

(

)

Definition at line 58 of file smacc_ros_launch_client_2.cpp.

{
  // Set the cancellation flag
  cancellationToken_.store(true);
}

References cancellationToken_.

Referenced by smacc2::client_behaviors::CbRosStop2::onEntry().

Here is the caller graph for this function:

Member Data Documentation

cancellationToken_

std::atomic<bool> smacc2::client_bases::ClRosLaunch2::cancellationToken_ = ATOMIC_VAR_INIT(false)

protected

Definition at line 76 of file smacc_ros_launch_client_2.hpp.

Referenced by launch(), and stop().

detached_futures_

std::map<std::future<void>, cancelCallback> smacc2::client_bases::ClRosLaunch2::detached_futures_

staticprotected

Definition at line 74 of file smacc_ros_launch_client_2.hpp.

launchFileName_

std::string smacc2::client_bases::ClRosLaunch2::launchFileName_

Definition at line 65 of file smacc_ros_launch_client_2.hpp.

Referenced by launch(), and smacc2::client_behaviors::CbRosLaunch2::onEntry().

launchPid_

pid_t smacc2::client_bases::ClRosLaunch2::launchPid_

Definition at line 67 of file smacc_ros_launch_client_2.hpp.

Referenced by executeRosLaunch().

packageName_

std::string smacc2::client_bases::ClRosLaunch2::packageName_

Definition at line 63 of file smacc_ros_launch_client_2.hpp.

Referenced by launch(), and smacc2::client_behaviors::CbRosLaunch2::onEntry().

result_

std::future<std::string> smacc2::client_bases::ClRosLaunch2::result_

protected

Definition at line 70 of file smacc_ros_launch_client_2.hpp.

Referenced by launch().

---

The documentation for this class was generated from the following files:

• smacc2/include/smacc2/client_bases/smacc_ros_launch_client_2.hpp
• smacc2/src/smacc2/client_bases/smacc_ros_launch_client_2.cpp
