cl_moveit2z::CbMoveEndEffector Class Reference

#include <cb_move_end_effector.hpp>

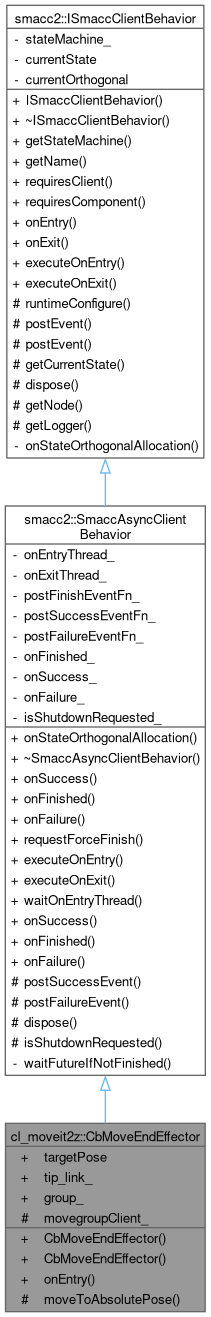

Inheritance diagram for cl_moveit2z::CbMoveEndEffector:

Collaboration diagram for cl_moveit2z::CbMoveEndEffector:

Public Member Functions
	CbMoveEndEffector ()
	CbMoveEndEffector (geometry_msgs::msg::PoseStamped target_pose, std::string tip_link="")
virtual void	onEntry () override
Public Member Functions inherited from cl_moveit2z::CbMoveit2zClientBehaviorBase
template<typename TOrthogonal , typename TSourceObject >
void	onStateOrthogonalAllocation ()
virtual	~CbMoveit2zClientBehaviorBase ()
Public Member Functions inherited from smacc2::SmaccAsyncClientBehavior
template<typename TOrthogonal , typename TSourceObject >
void	onStateOrthogonalAllocation ()
virtual	~SmaccAsyncClientBehavior ()
template<typename TCallback , typename T >
smacc2::SmaccSignalConnection	onSuccess (TCallback callback, T *object)
template<typename TCallback , typename T >
smacc2::SmaccSignalConnection	onFinished (TCallback callback, T *object)
template<typename TCallback , typename T >
smacc2::SmaccSignalConnection	onFailure (TCallback callback, T *object)
void	requestForceFinish ()
void	executeOnEntry () override
void	executeOnExit () override
void	waitOnEntryThread (bool requestFinish)
template<typename TCallbackMethod , typename T >
smacc2::SmaccSignalConnection	onSuccess (TCallbackMethod callback, T *object)
template<typename TCallbackMethod , typename T >
smacc2::SmaccSignalConnection	onFinished (TCallbackMethod callback, T *object)
template<typename TCallbackMethod , typename T >
smacc2::SmaccSignalConnection	onFailure (TCallbackMethod callback, T *object)
Public Member Functions inherited from smacc2::ISmaccClientBehavior
	ISmaccClientBehavior ()
virtual	~ISmaccClientBehavior ()
ISmaccStateMachine *	getStateMachine ()
std::string	getName () const
template<typename SmaccClientType >
void	requiresClient (SmaccClientType *&storage)
template<typename SmaccComponentType >
void	requiresComponent (SmaccComponentType *&storage, ComponentRequirement requirementType=ComponentRequirement::SOFT)
template<typename SmaccComponentType >
void	requiresComponent (std::string name, SmaccComponentType *&storage, ComponentRequirement requirementType=ComponentRequirement::SOFT)
virtual void	onExit ()

Public Attributes
geometry_msgs::msg::PoseStamped	targetPose
std::string	tip_link_
std::optional< std::string >	group_

Protected Member Functions
bool	moveToAbsolutePose (moveit::planning_interface::MoveGroupInterface &moveGroupInterface, geometry_msgs::msg::PoseStamped &targetObjectPose)
Protected Member Functions inherited from cl_moveit2z::CbMoveit2zClientBehaviorBase
void	postMotionSuccess ()
void	postMotionFailure ()
Protected Member Functions inherited from smacc2::SmaccAsyncClientBehavior
void	postSuccessEvent ()
void	postFailureEvent ()
virtual void	dispose () override
bool	isShutdownRequested ()
	onEntry is executed in a new thread. However the current state cannot be left until the onEntry thread finishes. This flag can be checked from the onEntry thread to force finishing the thread.
Protected Member Functions inherited from smacc2::ISmaccClientBehavior
virtual void	runtimeConfigure ()
template<typename EventType >
void	postEvent (const EventType &ev)
template<typename EventType >
void	postEvent ()
ISmaccState *	getCurrentState ()
virtual rclcpp::Node::SharedPtr	getNode () const
virtual rclcpp::Logger	getLogger () const

Additional Inherited Members
Protected Attributes inherited from cl_moveit2z::CbMoveit2zClientBehaviorBase
CpMoveGroupInterface *	cpMoveGroup_ = nullptr
CpMotionPlanner *	cpMotionPlanner_ = nullptr
CpTrajectoryExecutor *	cpTrajectoryExecutor_ = nullptr
CpTrajectoryHistory *	cpTrajectoryHistory_ = nullptr

Detailed Description

Definition at line 34 of file cb_move_end_effector.hpp.

Constructor & Destructor Documentation

CbMoveEndEffector() [1/2]

cl_moveit2z::CbMoveEndEffector::CbMoveEndEffector ( )

inline

Definition at line 41 of file cb_move_end_effector.hpp.

{}

CbMoveEndEffector() [2/2]

cl_moveit2z::CbMoveEndEffector::CbMoveEndEffector ( geometry_msgs::msg::PoseStamped target_pose, std::string tip_link = "" )

inline

Definition at line 43 of file cb_move_end_effector.hpp.

  : targetPose(target_pose)
  {
    tip_link_ = tip_link;
  }

References tip_link_.

Member Function Documentation

moveToAbsolutePose()

bool cl_moveit2z::CbMoveEndEffector::moveToAbsolutePose ( moveit::planning_interface::MoveGroupInterface & moveGroupInterface, geometry_msgs::msg::PoseStamped & targetObjectPose )

inlineprotected

Definition at line 72 of file cb_move_end_effector.hpp.

  {
    RCLCPP_DEBUG(getLogger(), "[CbMoveEndEffector] Synchronous sleep of 1 seconds");
    rclcpp::sleep_for(500ms);

    // Try to use CpMotionPlanner component (preferred)
    CpMotionPlanner * motionPlanner = cpMotionPlanner_;

    bool success = false;
    moveit::planning_interface::MoveGroupInterface::Plan computedMotionPlan;

    RCLCPP_INFO_STREAM(
      getLogger(), "[CbMoveEndEffector] Target End effector Pose: " << targetObjectPose);

    if (motionPlanner != nullptr)
    {
      // Use component-based motion planner (preferred)
      RCLCPP_INFO(getLogger(), "[CbMoveEndEffector] Using CpMotionPlanner component for planning");

      PlanningOptions options;
      options.planningTime = 1.0;
      options.poseReferenceFrame = targetObjectPose.header.frame_id;

      std::optional<std::string> tipLinkOpt;
      if (!tip_link_.empty())
      {
        tipLinkOpt = tip_link_;
      }

      auto result = motionPlanner->planToPose(targetObjectPose, tipLinkOpt, options);

      success = result.success;
      if (success)
      {
        computedMotionPlan = result.plan;
        RCLCPP_INFO(getLogger(), "[CbMoveEndEffector] Planning succeeded (via CpMotionPlanner)");
      }
      else
      {
        RCLCPP_WARN(
          getLogger(), "[CbMoveEndEffector] Planning failed (via CpMotionPlanner): %s",
          result.errorMessage.c_str());
      }
    }
    else
    {
      // Fallback to legacy direct API calls
      RCLCPP_WARN(
        getLogger(),
        "[CbMoveEndEffector] CpMotionPlanner component not available, using legacy planning "
        "(consider adding CpMotionPlanner component)");

      moveGroupInterface.setPlanningTime(1.0);
      moveGroupInterface.setPoseTarget(targetObjectPose, tip_link_);
      moveGroupInterface.setPoseReferenceFrame(targetObjectPose.header.frame_id);

      success =
        (moveGroupInterface.plan(computedMotionPlan) == moveit::core::MoveItErrorCode::SUCCESS);
      RCLCPP_INFO(
        getLogger(), "[CbMoveEndEffector] Planning %s (legacy mode)",
        success ? "succeeded" : "FAILED");
    }

    // Execution
    if (success)
    {
      // Try to use CpTrajectoryExecutor component (preferred)
      CpTrajectoryExecutor * trajectoryExecutor = cpTrajectoryExecutor_;

      bool executionSuccess = false;

      if (trajectoryExecutor != nullptr)
      {
        // Use component-based trajectory executor (preferred)
        RCLCPP_INFO(
          getLogger(), "[CbMoveEndEffector] Using CpTrajectoryExecutor component for execution");

        ExecutionOptions execOptions;
        execOptions.trajectoryName = this->getName();

        auto execResult = trajectoryExecutor->executePlan(computedMotionPlan, execOptions);
        executionSuccess = execResult.success;

        if (executionSuccess)
        {
          RCLCPP_INFO(
            getLogger(), "[CbMoveEndEffector] Execution succeeded (via CpTrajectoryExecutor)");
        }
        else
        {
          RCLCPP_WARN(
            getLogger(), "[CbMoveEndEffector] Execution failed (via CpTrajectoryExecutor): %s",
            execResult.errorMessage.c_str());
        }
      }
      else
      {
        // Fallback to legacy direct execution
        RCLCPP_WARN(
          getLogger(),
          "[CbMoveEndEffector] CpTrajectoryExecutor component not available, using legacy "
          "execution "
          "(consider adding CpTrajectoryExecutor component)");

        auto executionResult = moveGroupInterface.execute(computedMotionPlan);
        executionSuccess = (executionResult == moveit_msgs::msg::MoveItErrorCodes::SUCCESS);

        RCLCPP_INFO(
          getLogger(), "[CbMoveEndEffector] Execution %s (legacy mode)",
          executionSuccess ? "succeeded" : "failed");
      }

      // Post events
      if (executionSuccess)
      {
        this->postMotionSuccess();
      }
      else
      {
        this->postMotionFailure();
      }
    }
    else
    {
      RCLCPP_INFO(getLogger(), "[CbMoveEndEffector] planning failed, skipping execution");
      this->postMotionFailure();
    }

    RCLCPP_DEBUG(getLogger(), "[CbMoveEndEffector] Synchronous sleep of 1 seconds");
    rclcpp::sleep_for(500ms);

    return success;
  }

References cl_moveit2z::CbMoveit2zClientBehaviorBase::cpMotionPlanner_, cl_moveit2z::CbMoveit2zClientBehaviorBase::cpTrajectoryExecutor_, cl_moveit2z::CpTrajectoryExecutor::executePlan(), smacc2::ISmaccClientBehavior::getLogger(), smacc2::ISmaccClientBehavior::getName(), cl_moveit2z::PlanningOptions::planningTime, cl_moveit2z::CpMotionPlanner::planToPose(), cl_moveit2z::PlanningOptions::poseReferenceFrame, cl_moveit2z::CbMoveit2zClientBehaviorBase::postMotionFailure(), cl_moveit2z::CbMoveit2zClientBehaviorBase::postMotionSuccess(), tip_link_, and cl_moveit2z::ExecutionOptions::trajectoryName.

Referenced by onEntry().

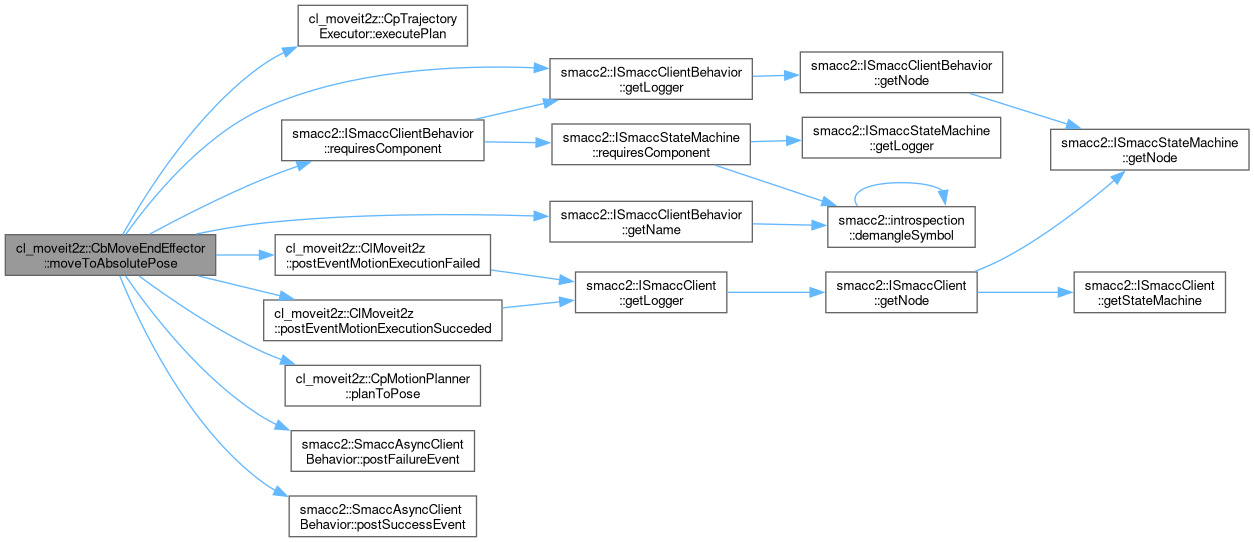

Here is the call graph for this function:

Here is the caller graph for this function:

onEntry()

virtual void cl_moveit2z::CbMoveEndEffector::onEntry ( )

inlineoverridevirtual

Reimplemented from smacc2::ISmaccClientBehavior.

Definition at line 49 of file cb_move_end_effector.hpp.

  {
    // components resolved in onStateOrthogonalAllocation (base class)
    if (this->group_)
    {
      RCLCPP_DEBUG(
        getLogger(), "[CbMoveEndEfector] new thread started to move absolute end effector");
      moveit::planning_interface::MoveGroupInterface move_group(getNode(), *group_);
      this->moveToAbsolutePose(move_group, targetPose);
      RCLCPP_DEBUG(
        getLogger(), "[CbMoveEndEfector] to move absolute end effector thread destroyed");
    }
    else
    {
      RCLCPP_DEBUG(
        getLogger(), "[CbMoveEndEfector] new thread started to move absolute end effector");
      this->moveToAbsolutePose(*(cpMoveGroup_->moveGroupClientInterface), targetPose);
      RCLCPP_DEBUG(
        getLogger(), "[CbMoveEndEfector] to move absolute end effector thread destroyed");
    }
  }

References cl_moveit2z::CbMoveit2zClientBehaviorBase::cpMoveGroup_, smacc2::ISmaccClientBehavior::getLogger(), smacc2::ISmaccClientBehavior::getNode(), group_, cl_moveit2z::CpMoveGroupInterface::moveGroupClientInterface, moveToAbsolutePose(), and targetPose.

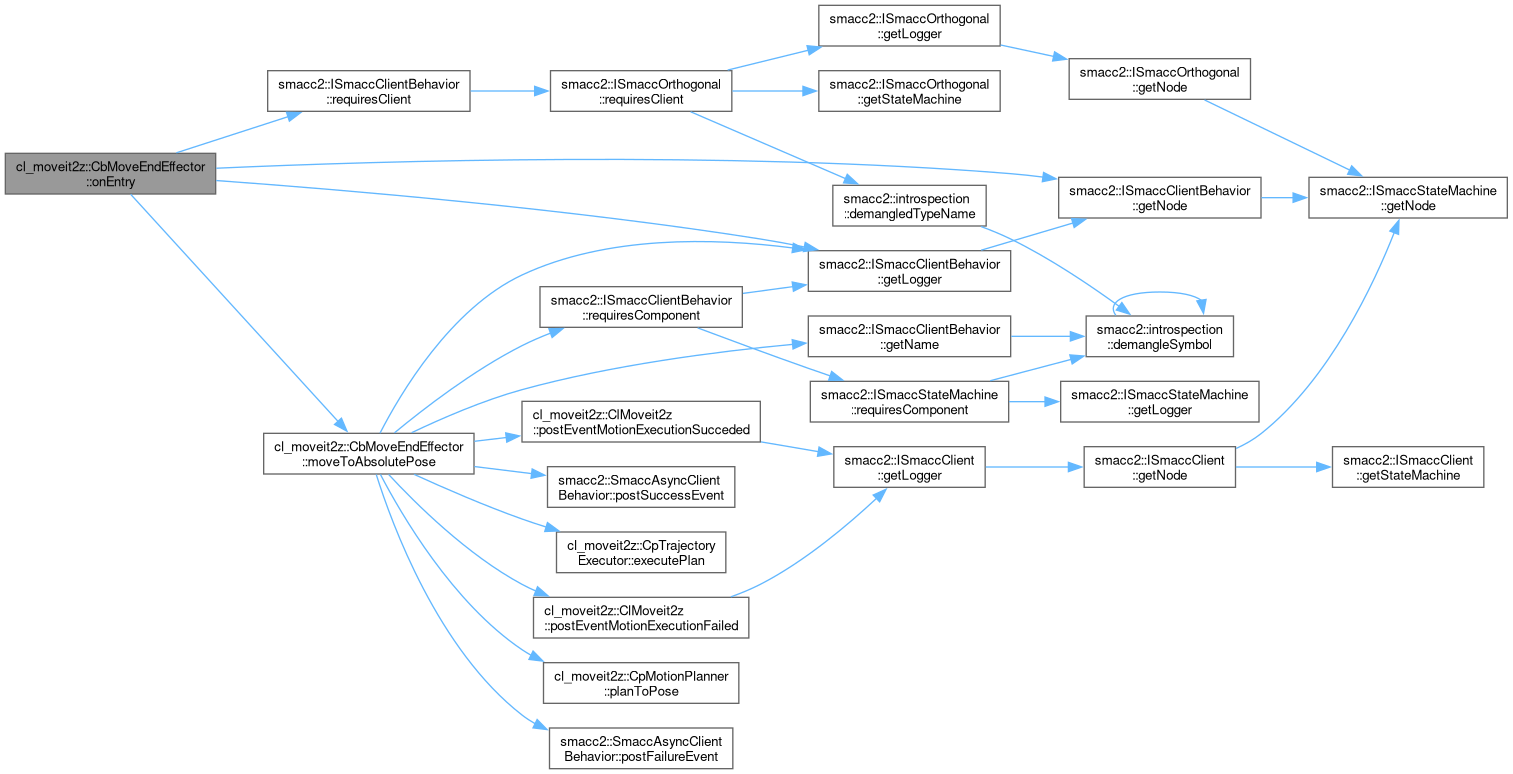

Here is the call graph for this function:

Member Data Documentation

group_

std::optional<std::string> cl_moveit2z::CbMoveEndEffector::group_

Definition at line 39 of file cb_move_end_effector.hpp.

Referenced by onEntry().

targetPose

geometry_msgs::msg::PoseStamped cl_moveit2z::CbMoveEndEffector::targetPose

Definition at line 37 of file cb_move_end_effector.hpp.

Referenced by onEntry().

tip_link_

std::string cl_moveit2z::CbMoveEndEffector::tip_link_

Definition at line 38 of file cb_move_end_effector.hpp.

Referenced by CbMoveEndEffector(), and moveToAbsolutePose().

---

The documentation for this class was generated from the following file:

• smacc2_client_library/cl_moveit2z/include/cl_moveit2z/client_behaviors/cb_move_end_effector.hpp
